laser tracker

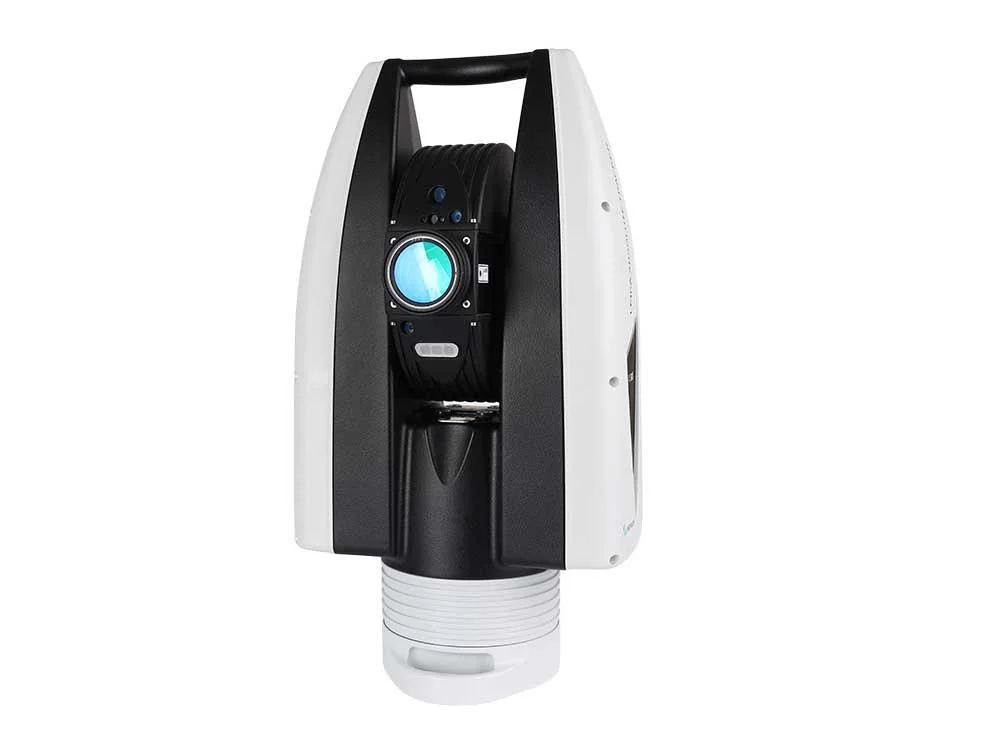

Leica ATS800
The Leica Absolute Tracker ATS800 is an advanced laser tracker that performs direct scanning using a laser beam, eliminating the need for a handheld scanner. It combines high-precision scanning and reflector tracking in a single system, enabling fast, accurate, and safe large-scale inspection from a distance. Ideal for demanding industrial environments and automated workflows.
Direct Scanning up to 40 meters
High-Speed C-FMCW Scanning across large surfaces
Automation-Ready
Dual Functionality: Scan + Track
Supports complex and reflective surfaces
Compact and portable
Leica ATS800
features

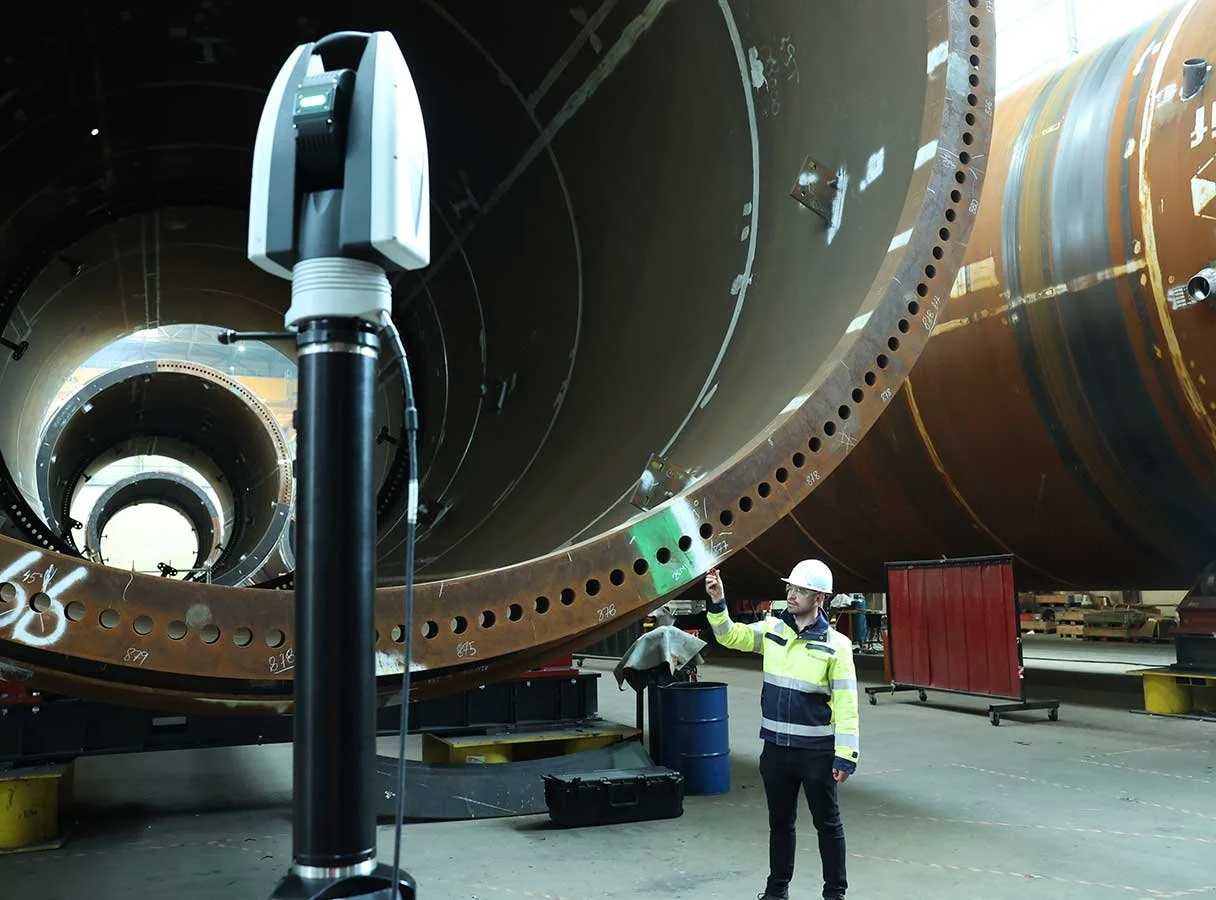

Direct Laser Scanning
(No Handheld Scanner Required)
The ATS800 performs direct scanning using a laser beam, eliminating the need for external handheld scanners. This simplifies the entire measurement process and reduces equipment complexity on the shop floor. Operators can capture data faster without repositioning or recalibrating additional devices. The result is a more streamlined workflow with fewer sources of error.

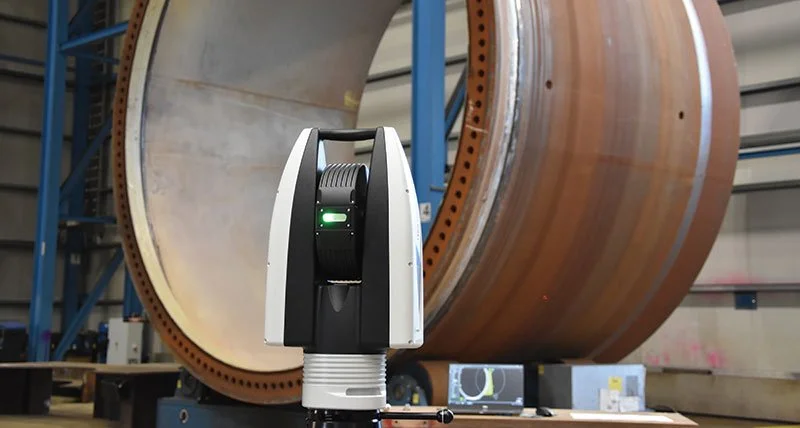

Long-Range Measurement up to 40 m
The system enables precise measurement from distances of up to 40 metres, allowing operators to inspect large components without physical access. This is especially valuable in industries such as aerospace or heavy machinery, where parts are difficult to reach. Measuring from a distance also significantly improves safety in hazardous environments. At the same time, it reduces setup time and increases overall efficiency.
C-FMCW High-Accuracy Scanning Technology
The ATS800 uses advanced C-FMCW technology to deliver fast and highly accurate measurements across large surfaces. It ensures reliable data capture even on complex geometries and challenging materials. This technology minimizes noise and improves measurement stability compared to conventional systems. As a result, users can trust the data for critical inspection tasks.
AI-Powered Feature Detection
With built-in AI-driven FeatureDetect, the system automatically identifies and measures features such as holes, edges, and surfaces. This reduces manual intervention and speeds up inspection processes. It also ensures consistency across measurements, regardless of operator experience. Early detection of deviations helps prevent costly rework and improves overall product quality.
Leica ATS800
technical data
Measurement Capabilities
Measurement range: up to 40 m
Technology: C-FMCW laser scanning
Measurement modes:
Direct laser scanning (no handheld scanner required)
Reflector tracking
Mobility & Design
Compact and portable design
Battery-powered operation
Suitable for flexible deployment across multiple locations
Accuracy & Performance
High-precision measurement of fine features and edges
TruePoint technology for accurate point positioning
AI-based automatic feature detection
Fast data acquisition for large-scale inspections
Environmental Resistance
Protection rating: IP54
Designed for industrial environments (dust, harsh conditions)
System Features
Integrated laser scanning + tracking system
PowerLock automatic reflector alignment
Built-in Wi-Fi for remote operation

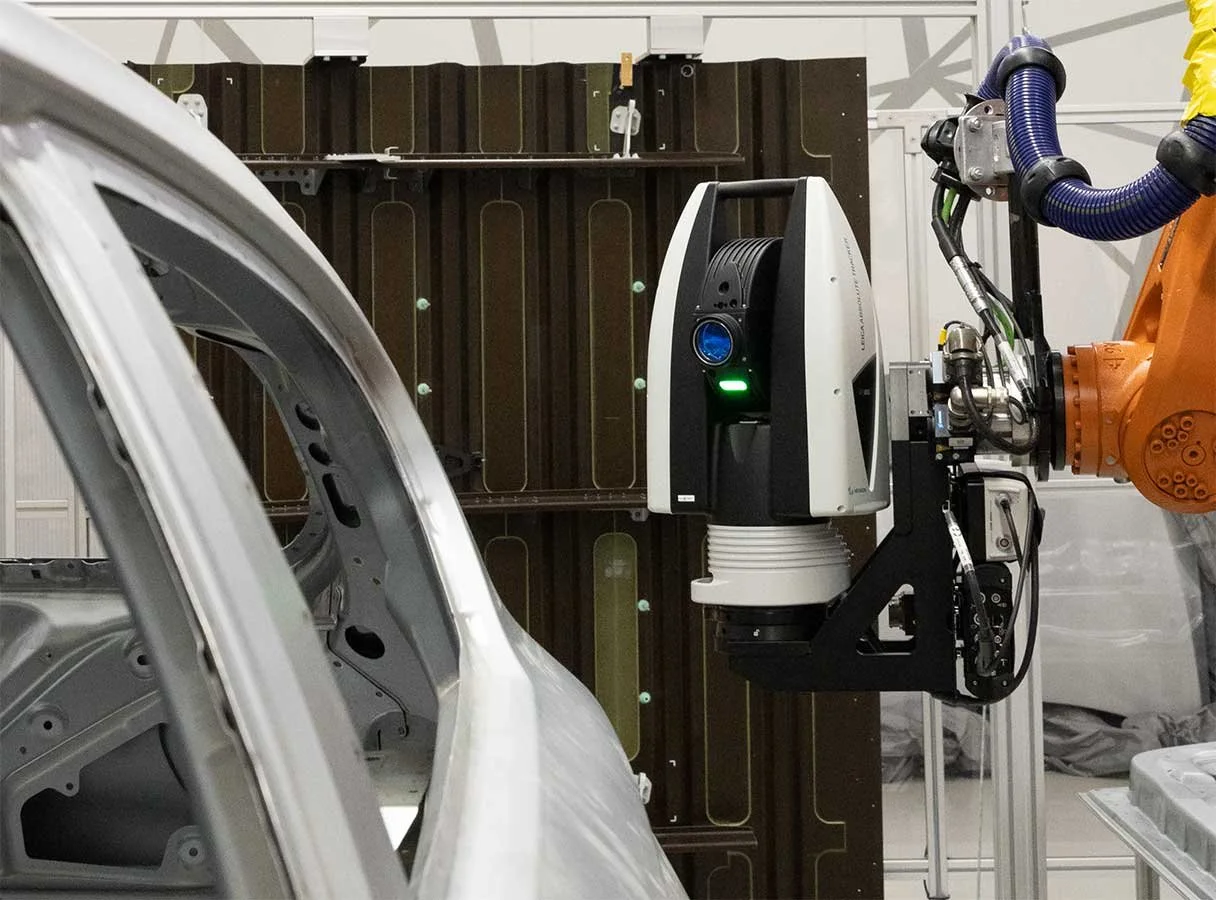

Automation-ready (AMRs, robotic integration)
Software & Integration
Compatible with automated inspection workflows
Supports integration with production and quality systems
Enables remote control and data processing
