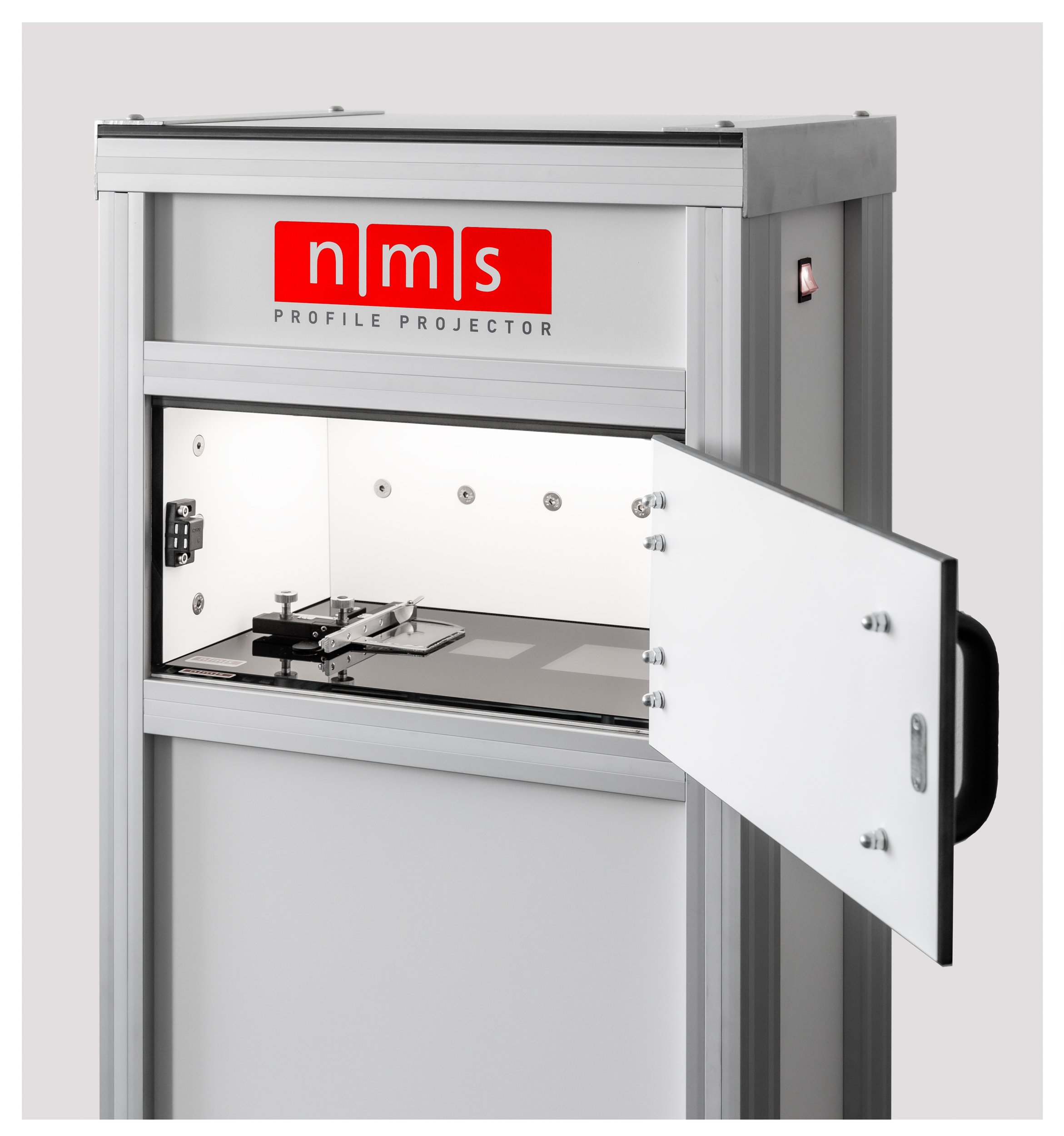

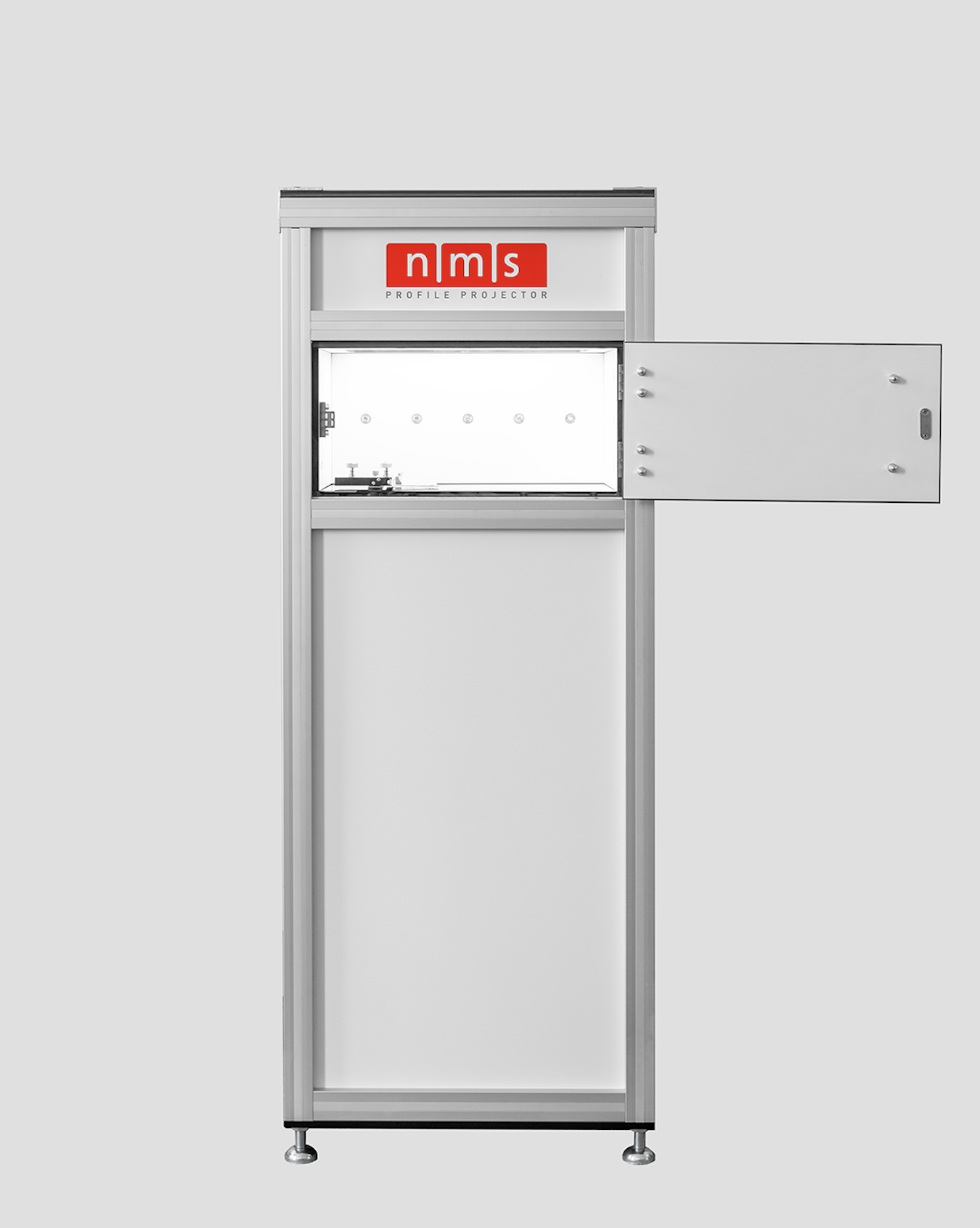

NMS ProfileProjector NG7
NG7 is a profile projector purpose-built for the cable industry, enabling precise measurement of insulation thickness in both production and laboratory settings.
When deployed directly in the production process, it helps minimize material overuse, improve quality control, and reduce production costs by up to 30%.
High precision measurement (resolution up to 0.002 mm)
Fast results in under 1 second
Fully automated evaluation (in accordance with DIN norm)
Reliable, consistent measurements
Cost-effective solution
Reduces production costs by up to 30%
3 camera focal lenghts for full production range coverage
NMS ProfileProjector NG7
features
Evaluates key geometric parameters in accordance with applicable standards
Automatically analyzes critical geometric characteristics based on relevant industry standards. Ensures compliance and consistent quality evaluation.
Intuitive and highly stable interface
Designed for effortless daily use with minimal training required. The system ensures stable performance even in demanding production environments.
Built-in statistical analysis and reporting
Automatically generates clear statistical overviews of your production data. This helps identify trends, deviations, and optimization opportunities.
Automatic evaluation against nominal values
With built-in WiFi and access point functionality, the system supports simple PC setup and remote operation via laptop, tablet, or smartphone—ideal for single-user workflows.
Concentricity / Ovality / Fill area
Evaluates key geometric properties including layer alignment, circularity, and filler distribution. Helps ensure correct cable structure, uniform performance, and compliance with standards.
Precision control for maximum measurement accuracy
Advanced algorithms ensure consistently precise and repeatable results. This minimizes measurement uncertainty and improves overall quality control
Role-based access (Admin / Technologist / Operator)
Access rights can be tailored to different user roles within your organization. This improves workflow control and enhances data security.
Full traceability of user measurements
Every measurement is stored with full user and time tracking. This enables complete traceability for audits and quality assurance processes.
Seamless integration with databases (SAP, CaDet)
Easily connects with your existing database systems for automatic data transfer. This eliminates manual input and reduces the risk of errors.
Optional manual measurement mode
In addition to automated workflows, manual measurements can be performed when needed. This provides flexibility for special or non-standard cases.
Measures insulation dimensions of the core, filler, and outer jacket across all types of industrial cables
Accurately measures all key insulation layers in a single process. Suitable for a wide range of cable types including round, sector-shaped, multi-layer, flat, and overhead cables.

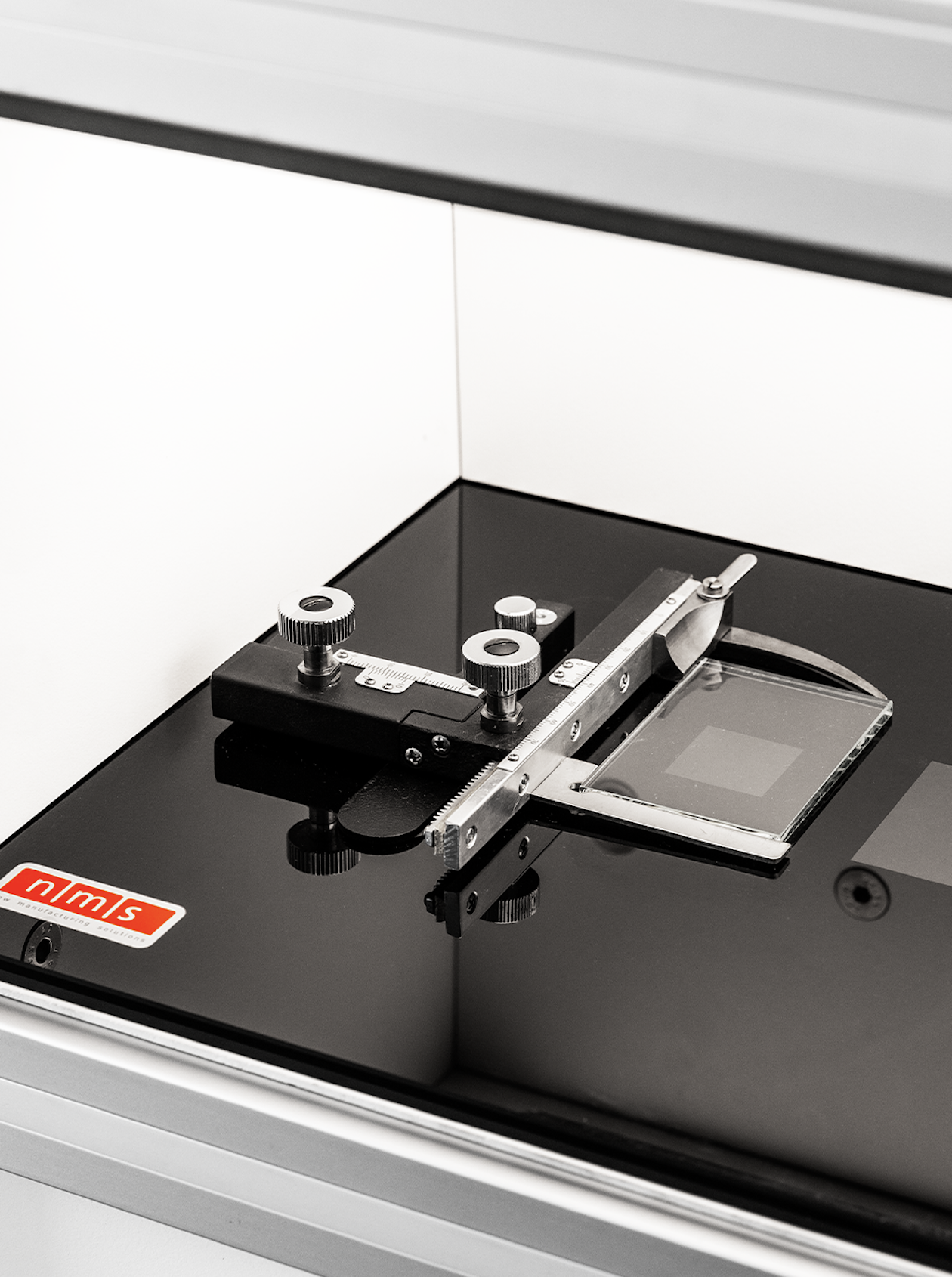

Suitable for both closed and open sample measurements
Supports measurement of both intact and cut samples. This provides flexibility for different inspection and laboratory scenarios.
NMS ProfileProjector NG7
technical data
Wide measurement range:
10 × 10 mm to 150 × 150 mm
Supports a wide variety of sample sizes within a single device. Ideal for different cable types and production requirements.
High resolution: 2 µm
Enables highly detailed measurement of even the smallest features. This ensures accurate evaluation of insulation thickness and geometry.
Ultra-fast measurement: < 1 second per sample
Delivers results in under one second per sample. This significantly speeds up the inspection process and increases productivity.
Industrial-ready platform (Windows 11)
Built on a stable and widely supported operating system. Ensures easy integration into existing IT infrastructure.
Compact footprint: 300 × 450 × 1300 cm
Designed to take up minimal space in your production area. Its compact form factor allows easy installation even in limited environments.
